Single Output Parallel Switching Power Supply SCN-1500W Cold Start Current 45A

Name: Single Output Parallel Switching Power Supply SCN1500W Cold Start Current 45A
Brand: Winston/OEM
Price: 297 USD

Cheap Single Output Parallel Switching Power Supply SCN-1500W Cold Start Current 45A for sale

Brand Name : Winston/OEM

Model Number : SCN-1500W

Certification : CE,ROSH

Place of Origin : China,Zhejiang

MOQ : 1PCS

Price : USD297

Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD

Supply Ability : 10000PCS/Month

Delivery Time : 3-15days after get payment.

Packaging Details : Export standard carton box

Warranty : 2 Years

OEM : YES

ODM : YES

Dimensions : 291*132*136mm

Condition : Original New

Weight : 5.3KG

Single Output : power 1500w

Working temperature : -10℃~+50℃

Input voltage range : 90-132VAC/180-264VAC 47-63Hz

Contact Now

Single Output In Parallel Switching Power Supply SCN-1500W Cold Start Current 45A

Summary

Single output: power 1500w
Input voltage: 90-132VAC/180-264VAC by switch

Technique parameter:

Model	SCN-1500-12	SCN-1500-24	SCN-1500-36	SCN-1500-48
DC output voltage current	12V 0-125A	24V 0-62.5A	36V 0-41A	48V 0-32A
Wave and noise	120mVp-p	200mVp-p	200mVp-p	240mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	80%	85%	86%	87%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
input voltage range	90-132VAC/180-264VDC by switch 254-370VDC 47-63Hz
Inpact current	Cold start current 45A/230VAC
Overload proctection	105%-135% cut off the output, automatic recovery
Over-voltage protection	115%-140% shut down O/P voltage, re-power on to recover
Setup rise hold up time	2000ms, 50ms, 20ms/230vac at full load
Withstand voltage	I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistance	I/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
Working temperature	-10℃~+50℃
Overall dimension	291132136mm
Weight	5.3kg
Packing	3837.521cm/2PCS/11kg

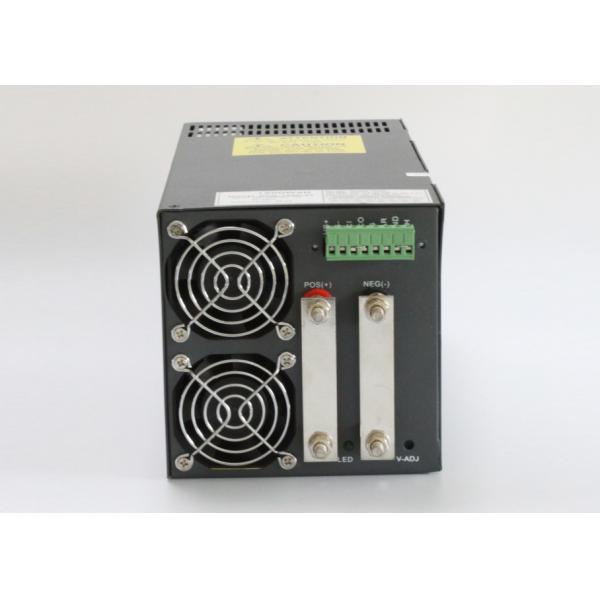

Product Picture

Single Output Parallel Switching Power Supply SCN-1500W Cold Start Current 45A

Dimensions

The installation of power supply

Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.
